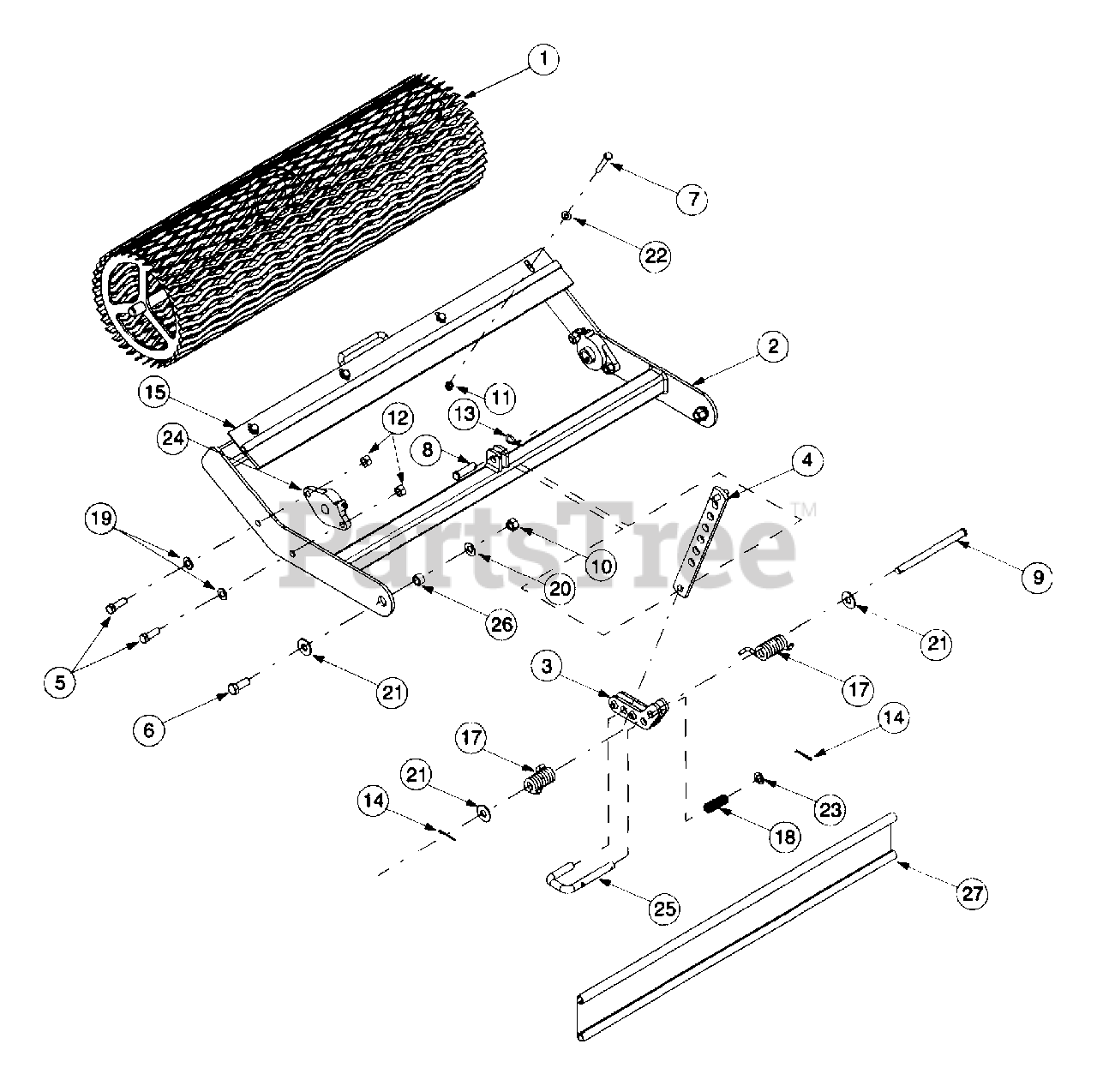

004 (190-004-100) - Cub Cadet 42" Hydraulic Tiller Roller Assembly Parts Diagram

42" Hydraulic Tiller

Roller Assembly Parts Diagram

  • Title
1

Cub Cadet 686-0150-0637

42-inch Roller Assembly

$

$

Not available

2

Cub Cadet 686-0151-0637

Roller Frame Assembly

$

$

Not available

3

Cub Cadet 686-0149-0637

Roller Bracket Assembly

$

$

Not available

4

Cub Cadet 686-0153-0637

Adjustment Bar

$

$

Not available

5

Cub Cadet 710-3029

Hex Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 710-3032

Hex Cap Screw, 1/2-13 x 1.25

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3103

Hex Cap Screw, 5/16-18 x 2.0

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 711-0231

Clevis Pin, .50 x 1.59
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

9

Cub Cadet 711-1384

Clevis Pin, .50 x 6.5

$

$

Not available

10

Cub Cadet 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3067

Hex Lock Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

14

Cub Cadet 714-0470

Cotter Pin 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 727-0523

42-inch Roller Brush

$

$

Not available

?16

Cub Cadet 732-0988

RH Torsion Spring

$

$

Not available

17

Cub Cadet 732-0989

LH Torsion Spring

$

$

Not available

18

Cub Cadet 732-3091

Compression Spring, .57 x 2.09

$

$

Not available

19

Cub Cadet 736-0226

Flat Washer, .474 x .879 x .064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

20

Cub Cadet 736-0253

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0257

Flat Washer, .536 x 1.262 x .101
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

22

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-3068

Flat Washer, .50 x .875 x .060

$6.99

$

In Stock, only 2 left!

0

24

Cub Cadet 741-1103

Flange Bearing, .75

$

$

Not available

25

Cub Cadet 747-1207

Roller Locking Rod

$

$

Not available

26

Cub Cadet 750-1069

Spacer, .51 x .75 x .44
(Superseded to 950-1069)

$

$

Not available

27

$

$

Not available
