004 (190-004-100) - Cub Cadet 42" Hydraulic Tiller att Hydraulic Pump Assembly Parts Diagram

42" Hydraulic Tiller

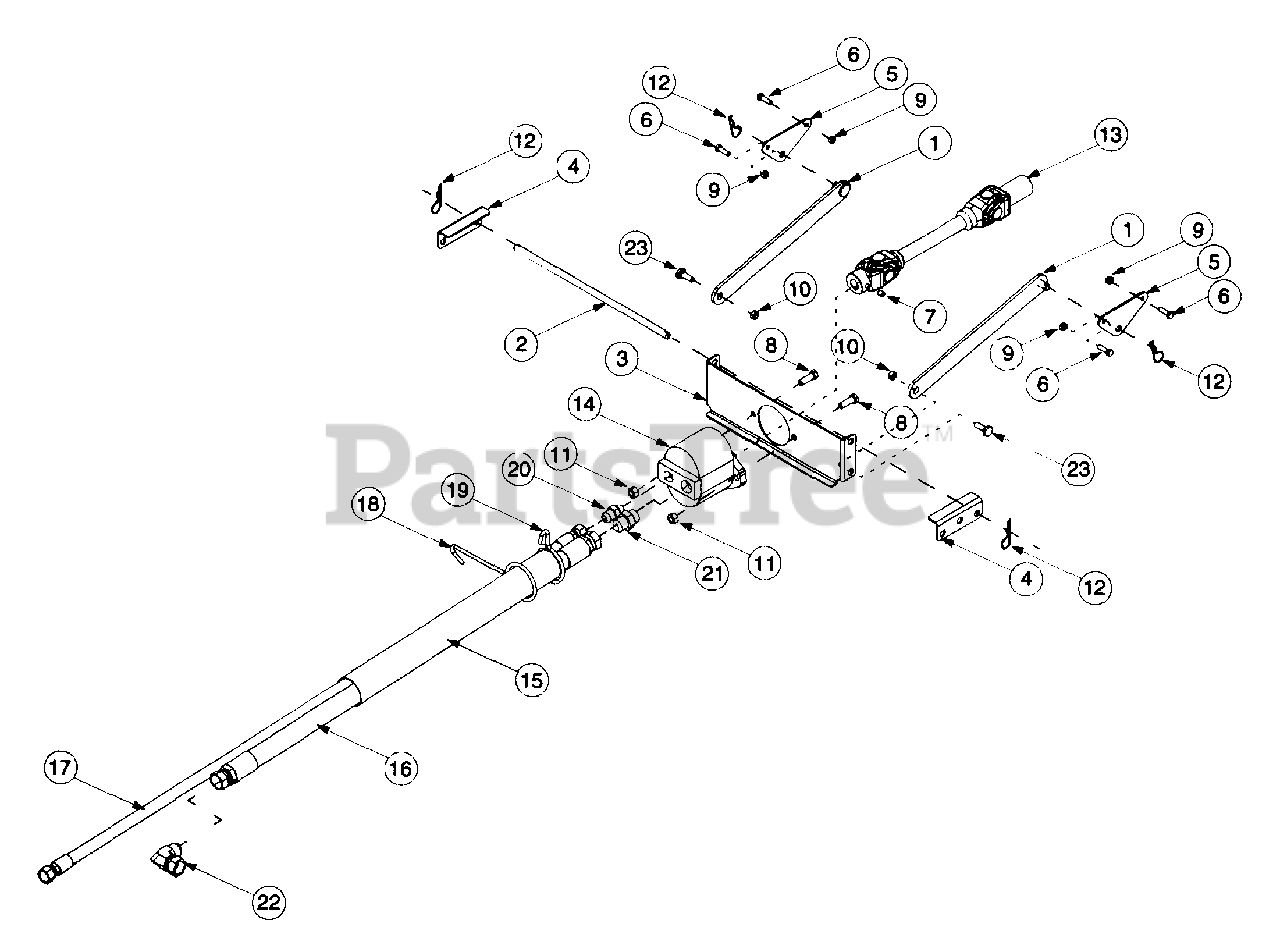

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0752-0716

Pump Support Brace

$

$

Not available

2

Cub Cadet 703-3557

Hanger Rod

$

$

Not available

3

Cub Cadet 703-3750-0716

Pump Mounting Bracket

$

$

Not available

4

Cub Cadet 703-3752-0716

Rear Frame Bracket

$

$

Not available

5

Cub Cadet 703-3758-0716

Front Frame Bracket

$

$

Not available

6

Cub Cadet 710-0375

Hex Cap Screw, 5/16-18 x 1.0
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0986

Set Screw, 3/8-16 x .437 Cup

$

$

Not available

8

Cub Cadet 710-3029

Hex Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 712-3009

Hex Lock Nut, 5/16-18, Ctr Lock

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3054

Hex Lock Nut, 3/8-24, Top Lock

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3067

Hex Lock Nut, 7/16-20, Patch

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 714-3020

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 717-3515

Hydraulic Pump Drive Shaft

$

$

Not available

14

Cub Cadet 718-0544

Eaton Hyd. Pump (26012-LAP)

$

$

Not available

15

Cub Cadet 727-0627

Hydraulic Hose Sleeve, 2.19 x 31

$

$

Not available

16

Cub Cadet 727-3207

Hydraulic Hose, 1 1/16-12 x 56

$273.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 727-3208

Hydraulic Hose, 7/8-14 x 67

$

$

Not available

18

Cub Cadet 732-0998

Long Support Hook

$

$

Not available

19

Cub Cadet 732-1011

Short Support Hook

$

$

Not available

20

Cub Cadet 737-0336

Hydraulic Fitting, 7/8

$

$

Not available

21

Cub Cadet 737-0337

Hydraulic Fitting, 1 1/16

$

$

Not available

22

Cub Cadet 737-3126

90° Hydraulic Fitting, 1 1/16

$

$

Not available

23

Cub Cadet 738-0689

Shoulder Bolt, 1/2 Dia. x .180
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0
