004 (190-004-100) - Cub Cadet 42" Hydraulic Tiller att Hydraulic Motor And Tine Assembly Parts Diagram

42" Hydraulic Tiller

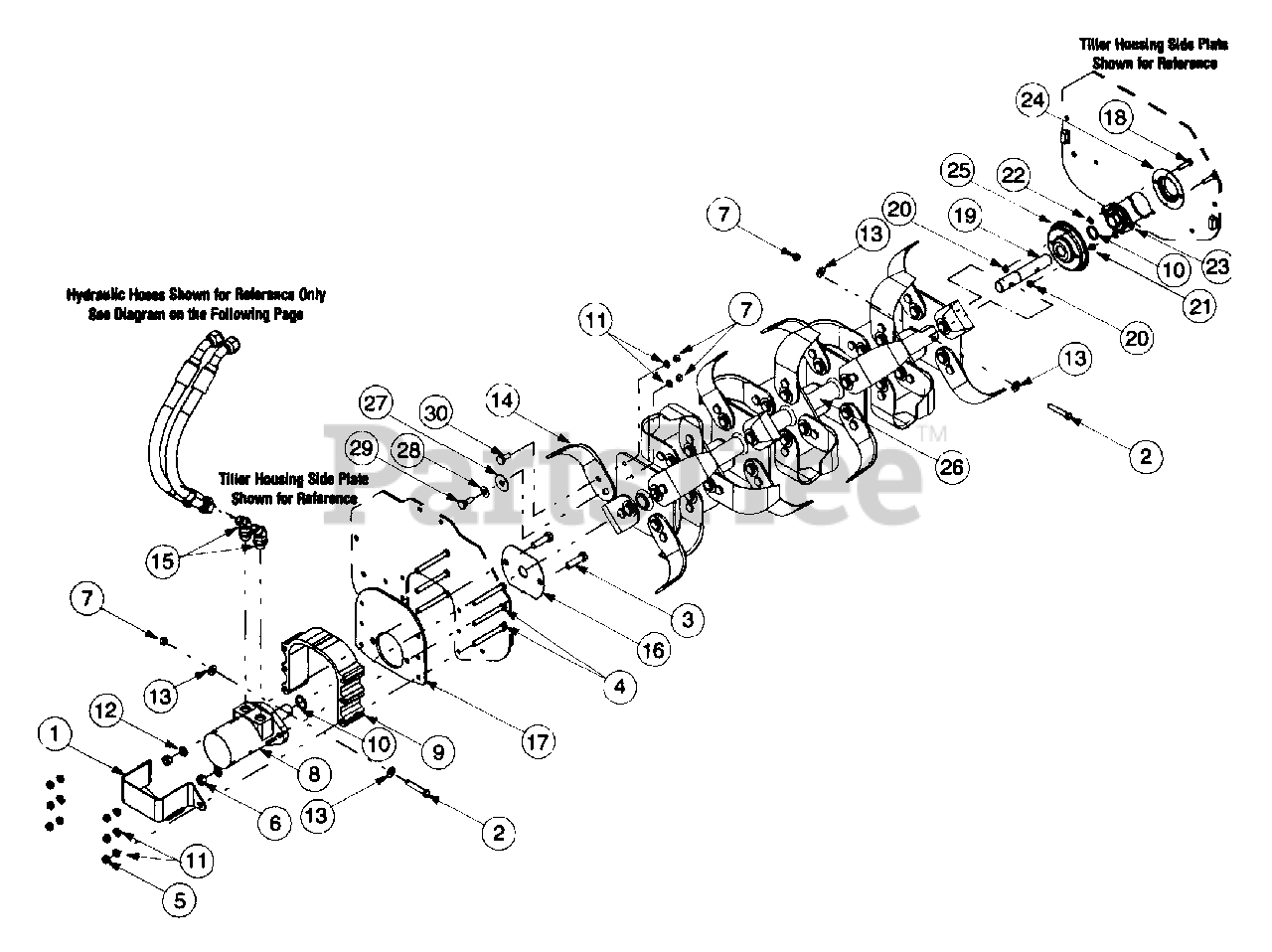

Hydraulic Motor And Tine Assembly Parts Diagram

  • Title
1

Cub Cadet 686-0123-0637

Hydraulic Motor Guard

$

$

Not available

2

Cub Cadet 710-1254

Hex Cap Screw, 3/8-24 x 2.25

$7.99

$

In Stock, Qty 8

0

3

Cub Cadet 710-3067

Hex Cap Screw, 1/2-13 x 1.75

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-3085

Hex Cap Screw, 3/8-16 x 3.5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3054

Hex Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 718-0659

Eaton Hyd. Motor (101-2716-009)

$

$

Not available

Cub Cadet ET-24300-625

Key, Hyd Pump Shaft

$

$

Not available

9

Cub Cadet 719-0552

Hydraulic Motor Mounting Spacer

$

$

Not available

10

Cub Cadet 721-0513

O Ring Seal

$

$

Not available

11

Cub Cadet 736-0217

Lock Washer, 3/8

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet 786-0290-0637

Articulating Tine

$34.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 737-0342

45° Hydraulic Adapter 7/8

$

$

Not available

16

Cub Cadet 786-0241-0637

Hydraulic Motor Cover

$

$

Not available

17

Cub Cadet 786-0291-0637

Hydraulic Motor Mounting Plate

$

$

Not available

18

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

19

Cub Cadet 711-1418

Tine Shaft

$

$

Not available

20

Cub Cadet 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 741-0723

Flange Bearing, 1.0

$

$

Not available

24

Cub Cadet 786-0242-0637

Dust Cap Cover

$

$

Not available

25

Cub Cadet 786-0262-0637

Bearing Cover

$

$

Not available

26

Cub Cadet 686-0124-0637

Tine Adapter Assembly

$

$

Not available

27

Cub Cadet 736-0208

Flat Washer, .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

28

Cub Cadet 736-0253

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-1138

Shoulder Screw, .49 x .34, 3/8-24

$7.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 738-1139

Shoulder Screw .49 x .21 3/8-24

$

$

Not available
