002 (190-002-100) - Cub Cadet 30" Hydraulic Tiller att Hydraulic Pump Assembly Parts Diagram

30" Hydraulic Tiller

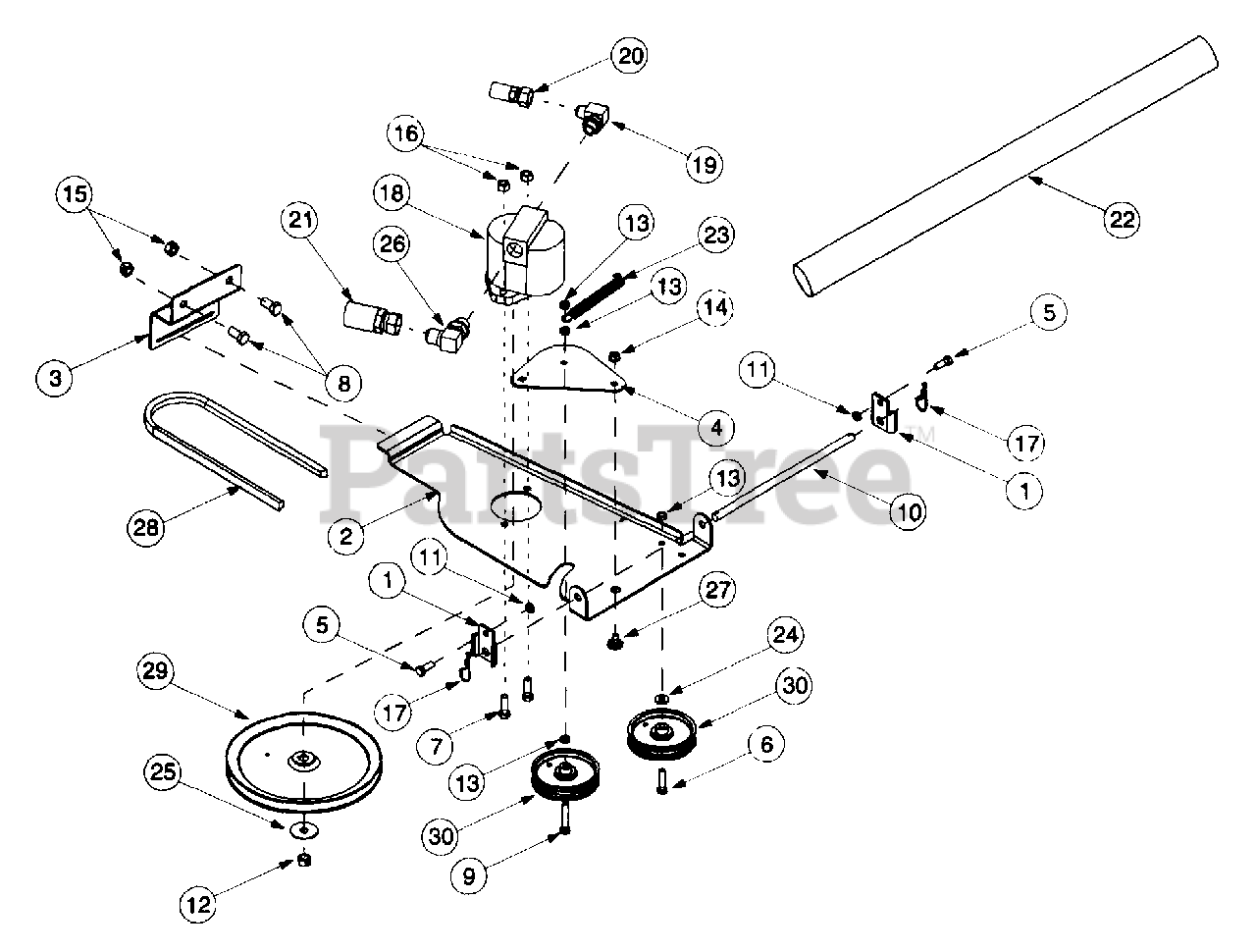

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 703-2737-0716

Frame Mounting Bracket

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3565-0716

Hyd. Pump Mounting Bracket

$

$

Not available

2

Cub Cadet 703-05903-0716

Hyd. Pump Mounting Bracket

Note: See Service Advisory CC-510

$128.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-3567-0716

Rear Frame Bracket

$

$

Not available

4

Cub Cadet 703-3568-0716

Idler Arm

$

$

Not available

5

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0520

Hex Cap Screw, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 710-3029

Hex Cap Screw, 7/16-20 x 1.25 GR5

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet 710-3131

Hex Cap Screw, 1/2-13 x 1.0 GR5

$5.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-3144

Hex Cap Screw, 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-3401

Front Hanger Rod, .5 Dia x 12.5 Lg

$34.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0181

Jam Nut, Top Lock, 3/8-16

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet 712-0239

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0266

Jam Nut, Ctr. Lock, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3005

Flange Lock Nut, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-3022

Hex Lock Nut Ctr Lock 1/2-13

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3067

Hex Lock Nut, 7/16-20 GR5

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 714-3020

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 718-0688

Eaton Hyd. Pump (26012-LAP)
(Superseded to 918-0688)

$

$

Not available

18

Cub Cadet 714-0237

Key, Square

Note: not shown

$

$

Not available

19

Cub Cadet 727-0220

90 degree Hydraulic Fitting, 7/8"

$

$

Not available

20

Cub Cadet 727-0519

Hydraulic Hose, 7/8-14 x 57

$

$

Not available

21

Cub Cadet 727-0521

Hydraulic Hose, 1 1/16-12 x 50

$

$

Not available

22

Cub Cadet 727-0627

Hose Sleeve, 2.19 x 31

$

$

Not available

23

Cub Cadet 732-0233

Extension Spring
(Superseded to 932-0233)

$

$

Not available

24

Cub Cadet 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

25

Cub Cadet 736-3027

Flat Washer, 531 x 1.75 x .090

$

$

Not available

26

Cub Cadet 737-0309

90 degree Hydraulic Fitting, 1 1/16"

$

$

Not available

27

Cub Cadet 738-0281

Shoulder Screw, .625 x .17, 3/8-16

$10.99

$

In Stock, only 2 left!

0

28

Cub Cadet 754-3101

V-Belt, A Section x 109.63
(Superseded to 954-3101)

$99.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 754-0197

V-Belt, 1/2 x 117
(Superseded to 954-0197)

Note: See Service Advisory CC-510, use on 2500 Series Tractors manufactured after December 1, 2005

$83.99

$

In Stock, only 3 left!

0

29

Cub Cadet 756-1178

Pulley, 10" Dia.

$

$

Not available

30

Cub Cadet 756-3005

Idler Pulley Flat w/ Flanges

$45.99

$

In Stock, Qty 20+

0

Cub Cadet 703-3600-0716

Hose Hook

Note: not shown, See Service Advisory CC-510

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0597

SCREW-HEX 1/4-20 x 1

Note: not shown, See Service Advisory CC-510

$3.99

$

In Stock, Qty 13

0

Cub Cadet 736-3090

WASHER-FLAT

Note: not shown, See Service Advisory CC-510

$6.99

$

In Stock, Qty 11

0

Cub Cadet 712-04064

NUT-FLGLK 1/4

Note: not shown, See Service Advisory CC-510

$3.99

$

In Stock, Qty 20+
