002 (190-002-100) - Cub Cadet 30" Hydraulic Tiller att Hydraulic Control Valve And Tiller Frame Parts Diagram

30" Hydraulic Tiller

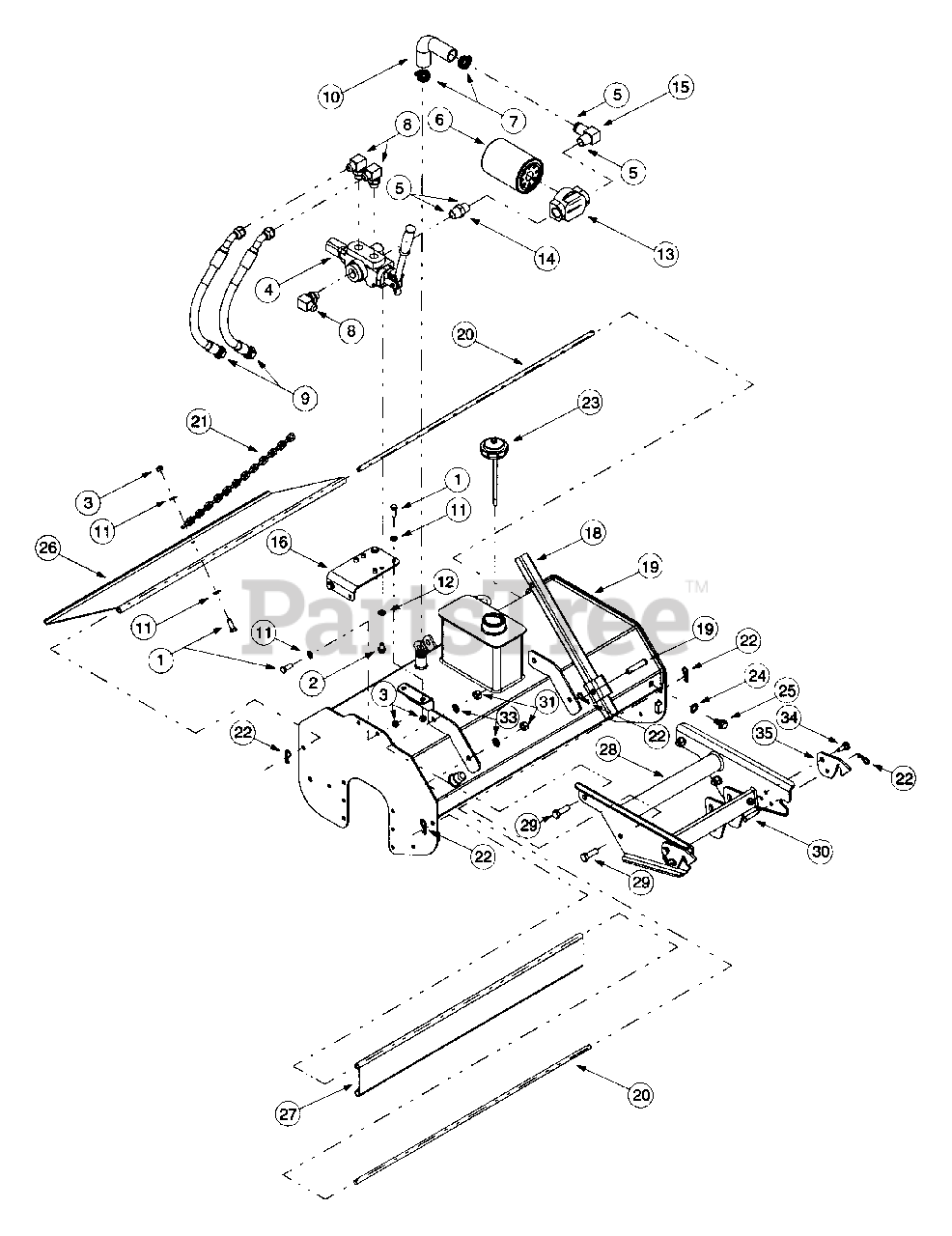

Hydraulic Control Valve And Tiller Frame Parts Diagram

  • Title
1

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0870

Shoulder Screw, 3/8-16 x .625

$6.49

$

In Stock, only 1 left!

0

3

Cub Cadet 712-3000

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 718-0673

Energy Hydraulic Valve
(Superseded to 918-0673)

$

$

Not available

5

Cub Cadet 721-0297

Locktite Hydraulic Sealant

$

$

Currently unavailable

6

Cub Cadet 723-0405

Oil Filter
(Superseded to 723P0405)

$42.99

$

In Stock, Qty 20+

0

7

Cub Cadet 726-0132

Adjustable Hose Clamp

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 727-0220

90° Hydraulic Adapter, 7/8

$

$

Not available

9

Cub Cadet 727-0520

Hydraulic Hose, 7/8-14

$

$

Not available

10

Cub Cadet 727-0625

90° Hydraulic Hose, 1.37 x 1.0

$

$

Not available

11

Cub Cadet 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0217

Lock Washer, 3/8

$4.49

$

In Stock, Qty 6

0

13

Cub Cadet 737-0306

Filter Housing
(Superseded to 681-0179)

$

$

Not available

14

Cub Cadet 737-0338

Hydraulic Adapter, 3/4 x 3/4

$

$

Not available

15

Cub Cadet 737-0341

90° Hydraulic Adapter, 3/4 x 1.0

$

$

Not available

16

Cub Cadet 786-0265-0637

Valve Mounting Bracket

$

$

Not available

?17

Cub Cadet 686-0143-0716

Frame Assembly

$

$

Not available

18

$

$

Not available

19

Cub Cadet 711-0510

Clevis Pin, .50 x 2.0

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-1380

Shield Pivot Rod

$

$

Not available

21

Cub Cadet 713-0490

Chain, 24.37"

$

$

Not available

22

Cub Cadet 714-0419B

Internal Cotter Pin

$

$

Currently unavailable

23

Cub Cadet 720-0315

Vented Tank Cap

$

$

Not available

24

Cub Cadet 721-0223

Stat-O-Seal O Ring
(Superseded to 921-0223)

$

$

Not available

25

Cub Cadet 738-0940

Drain Plug

$8.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 786-0252-0716

Rear Tine Shield, 30"

$

$

Not available

27

Cub Cadet 786-0274-0716

Front Tine Shield, 30"

$

$

Not available

28

Cub Cadet 686-0142-0716

Sleeve Hitch Assembly

$

$

Not available

29

Cub Cadet 710-3181

Hex Cap Screw, 1/2-13 x 1.5

$6.99

$

In Stock, only 1 left!

0

30

Cub Cadet 711-0415

Clevis Pin, 3/8 x 1.75

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

?32

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

34

Cub Cadet 738-0380

Shoulder Screw, .50 x .27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

35

$

$

Not available
